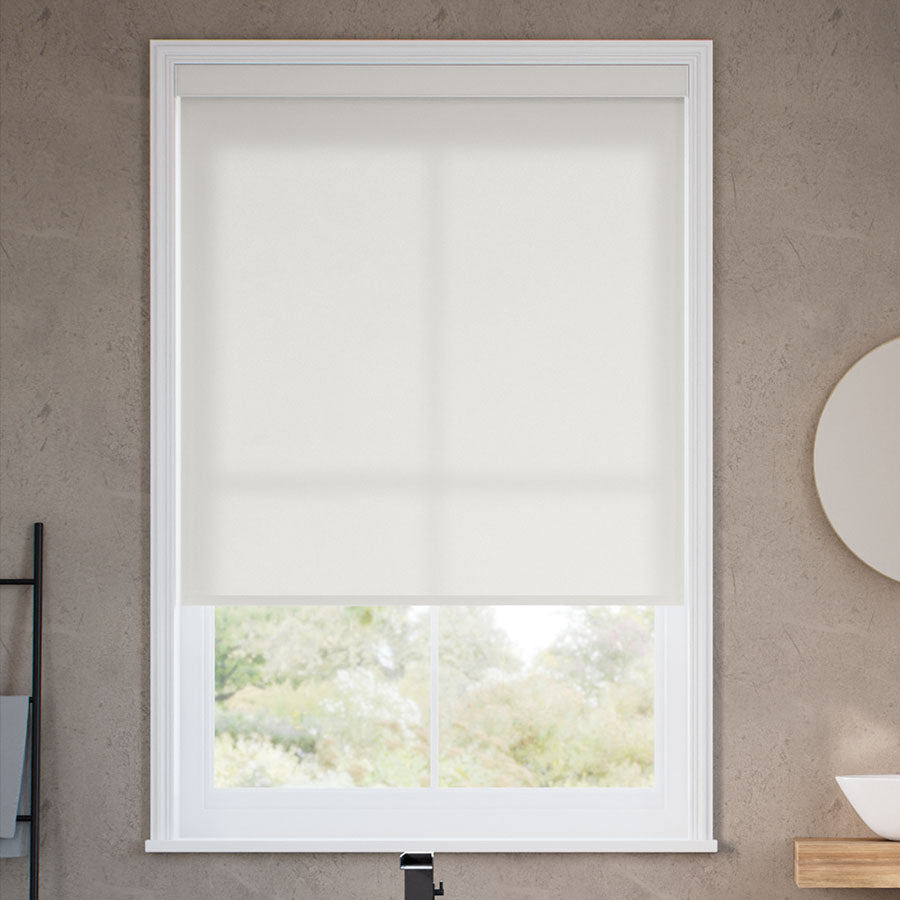

Motorized Sheer Weave Solar

Product Details

Description

Why They Are Loved

Effortless Motorized Operation: Raise or lower your shades with the push of a button—or automate them via remote or smart home integration for a seamless, hands-free experience.
UV & Glare Protection: Solar screen fabrics filter sunlight to minimize glare on TVs and devices while preserving your outdoor view and protecting floors and furniture from sun fading.
Energy Efficient: These light-filtering solar shades help regulate interior temperatures, making them a popular energy-saving choice for sunny climates and south-facing windows.

Customization Options

The Select Blinds Difference

DIY-friendly

Handcrafted to order

Free shipping

Measuring protection guarantee

Free 3 year limited warranty

Select Blinds is committed to making home improvement easy and accessible. Our DIY-friendly design ensures a straightforward installation process, and every product is shipped free to your doorstep for your convenience.

With over 170 products and 1,800 colors to choose from, Select Blinds offers unmatched variety and quality in custom window treatments. Each product is handcrafted with care to ensure exceptional results you’ll love.

Specifications

Width

21" - 96"

*Varies by lift style

Height

24" - 108"

*Varies by lift style

Depth

2 1/4"

*Minimum

Headrail Height

*Varies by lift style

Dimensions by Configuration

Configuration	Width	Height	Required Mounting Space	Cassette Dimensions
Motorized	21" - 96"	24" - 108"	2 1/4" Inside Mount minimum depth - Exposed Roll 2 5/8" Inside Mount minimum depth - Cassette 3 1/4" Inside Mount minimum depth - Large Cassette 3" Inside Mount flush depth - Exposed Roll 3 3/8" Inside Mount flush depth - Cassette 3 3/4" Inside Mount flush depth - Large Cassette 1 3/8" Outside Mount depth space	Shades up to 96" wide: Depth: 3 3/8" Height: 3" Shades over 96" wide (Large Cassette): Depth: 3 3/4" Height: 3 5/8"
No-Drill Blinds Headrail	24" - 72"	18" -160"	2 1/4" Inside Mount minimum depth - Exposed Roll 2 5/8" Inside Mount minimum depth - Cassette 3 1/4" Inside Mount minimum depth - Large Cassette 3" Inside Mount flush depth - Exposed Roll 3 3/8" Inside Mount flush depth - Cassette 3 3/4" Inside Mount flush depth - Large Cassette 1 3/8" Outside Mount depth space	Shades up to 96" wide: Depth: 3 3/8" Height: 3" Shades over 96" wide (Large Cassette): Depth: 3 3/4" Height: 3 5/8"

Fit & Factory Deductions

No Drill

IMPORTANT MEASURING TIP: If No-Drill Blinds Headrail is chosen, take all three standard width measurements (top, middle, bottom) to check for variance, but be sure to input the exact measurement of the top of your window frame into the width field. Compare the three measurements, and if the variance between them exceeds 1/4", No-Drill Blinds Headrail may not fit properly.
The No-Drill Blinds Headrail option is only available for Inside Mount, requires 2 1/2" of depth to install, and is not recommended for use with PVC window frames.
Factory will deduct approximately 5/8" off the width of the No-Drill Blinds Headrail.
No-Drill Blinds Headrail is only available in the color white and will be visible after installation, with or without valance.
The locking mechanism on the No-Drill Blinds Headrail will be located on the opposite end of the control side selected for Continuous Cord Loop. The locking mechanism will be located on the right side for Cordless and Motorized options.

Good to Know

Deductions may vary +/- 1/8". Do not account for factory deductions when measuring for your shade. Deduction information detailed in the table below.
This product comes with 6" to 10" of extra fabric to conceal roller.
Aluminum roller comes standard.
There will be roughly a 1” gap between the top of the fabric roll and the headrail on inside mount when the shade is fully extended.
These fabrics are not privacy shades and may allow visibility through them depending on the lighting.
Headrail cassette on an inside mount is top mount only. Side mount not available.
Motorized options are powered by rechargeable lithium-ion batteries, which will be shipped at or below 30% charge for safety. Fully charge your shades before use for optimal performance.

Motorization

SelectConnect Bridge

The SelectConnect Bridge is compatible with almost all Motorization systems we offer. (Not compatible with Panel Tracks, Wood Blinds, or the SelectBlinds Automation system)
The SelectConnect Bridge is only compatible with remote-operated shades. (shades that use both Wand + Remote are compatible, Wand-only shades are not compatible)
You must have Wi-Fi access in areas where products are installed for controller to work.
Download of free Bond Home App on iOS (Apple) or Android devices required.
Controller range is approximately 150' or 30 blinds/shades. One controller per floor is recommended for use in typical size homes. However, multiple units may be needed for full coverage depending on the location of window coverings and the layout and construction materials of your home.
Please note this product is not covered under our FIT Guarantee.
Please note this product is not eligible for returns or refunds unless deemed defective. Contact Customer Service for more details.

Remote Motorization

Motorization remote is not included and at least one remote is needed per order. Motorization charger comes standard.
Add a 1-channel remote which can operate on a single frequency or upgrade to a 6-channel and 16-channel remote available at additional cost. When upgrading to multi-channel/frequency remote, please select 'No Remote' for any additional motorized shades you want to add to and power with it.
Battery operated white remote comes included with a lithium battery CR 2032 – 3v.
Remote reaches from approximately 260 feet away from shade.
1 channel remote can operate up to 1 shade. If you have more than 1 shade to operate on a single remote we recommend 6 channel or 16 channel remote.
6 channel remote can operate up to 1 shade on each channel for a total of 6 shades.
16 channel remote can operate up to 1 shade on each channel for a total of 16 shades.
Battery operated white remote comes included with a lithium battery CR 2032 – 3v.
Remote reaches from approximately 260 feet away from shade.

Motorized Wand

Downloads

Motorization Instructions

Downloads

SelectConnect App Setup & Product Pairing Instructions

Measuring

Inside Mount Instructions

Measuring the width

Measuring the height

Start by measuring the height from the inside of the window’s frame (the left, middle, and right).
Record the largest height out of the 3 measurements up to the nearest 1/8”.
If you get a 1/16” or 1/32” increment, round up to the nearest 1/8”. (For Example, If the largest measurement is 24 9/16", round up to 24 5/8". If it's 24 1/2", no need to round up.)
This will be the height you order.

Outside Mount Instructions

An outside mount is a great choice for better light coverage, since it fully covers the window and frame. To get the right fit, you’ll need to account for a few extra measurements when placing your order. We’ll custom make your shade to the exact dimensions you provide—no automatic additions are made.

Flat Surface Requirements

Start by choosing where you’d like to mount your shade. You’ll need at least 1-2½” of flat mounting space. For more details, check the product page and review the “Specifications” tab.

Measuring the width

Measuring the height

The height of the window needs to be exact. Start with measuring at the left, the middle, and finish up by measuring the right side of the window opening. You’ll use the largest of the three measurements and add the recommended minimum of 4 inches. This will ensure the window is properly covered.
You now have the right height to use when ordering your solar shades.

Measuring Tips

Downloads

Measure Instructions

Contact Customer Support

Shipping & Production

Expedite Your Order Today

Free Shipping on Everything

Freight Surcharge Chart	SelectBlinds	Other Retailers
Blinds and shades under 94" wide	Free	Free
Blinds and shades 94" wide & above	Free	$70 per oversize product
Vertical blinds 94" in height or width & above	Free	$70 per oversize product
Some Shutters	Free	$70 per oversize product
