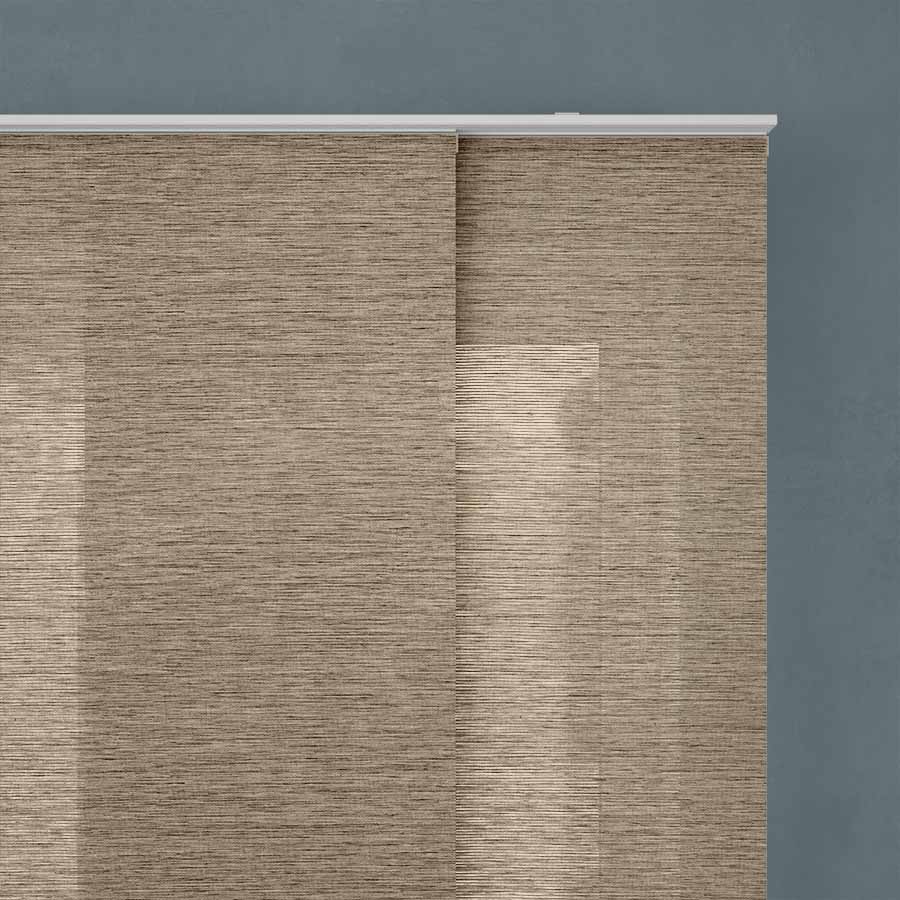

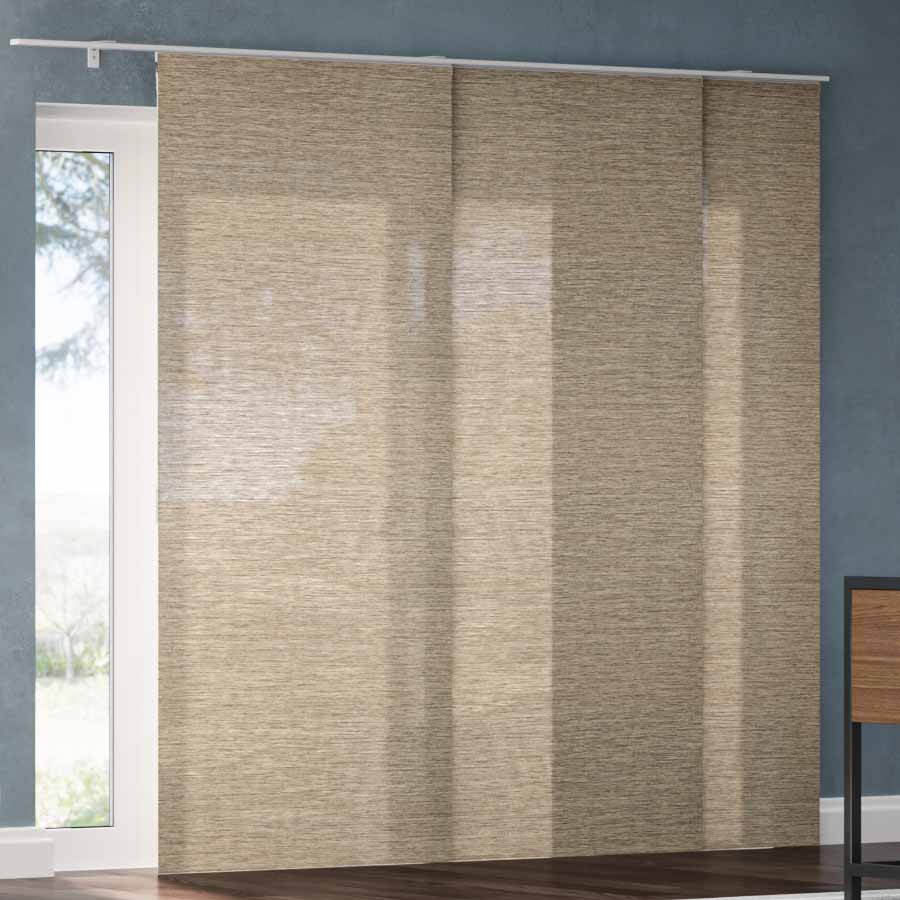

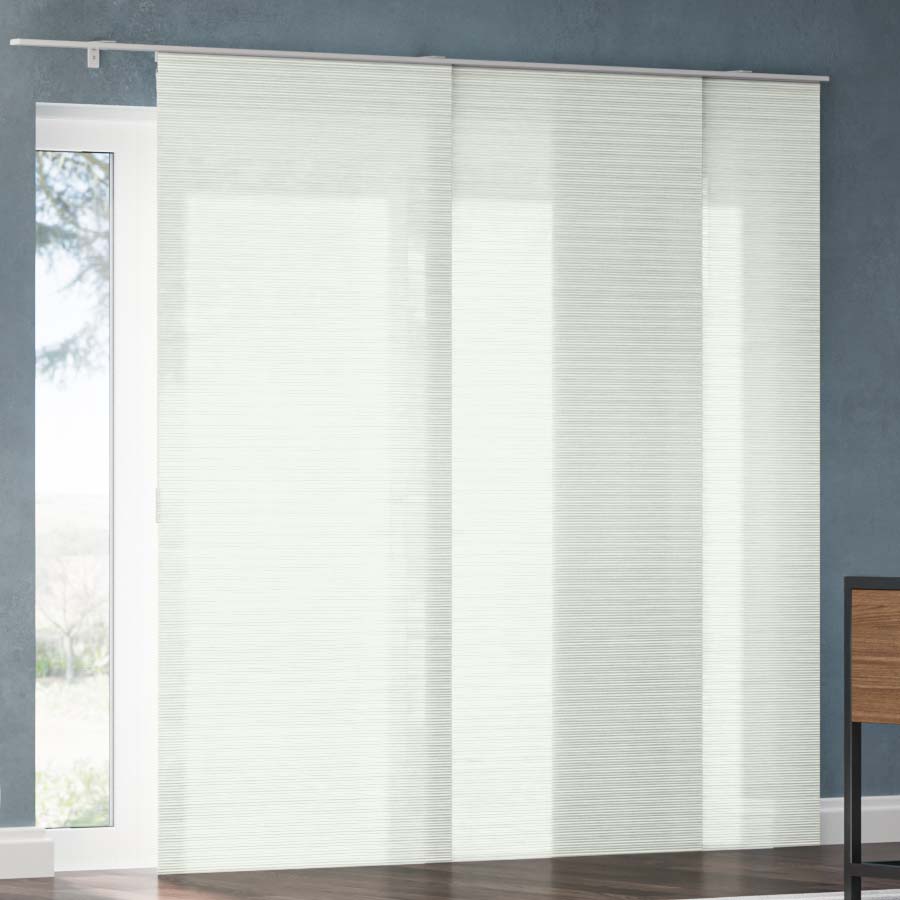

Panel Track Vertical Blinds

Product Details

Description

Why They Are Loved

Customization Options

Stack Location: Choose where your panels stack when opened to best suit your door or window and maximize your outside view.
Track Color: Select a track color that complements your space. Available in a clean white or gray finish for a streamlined look.

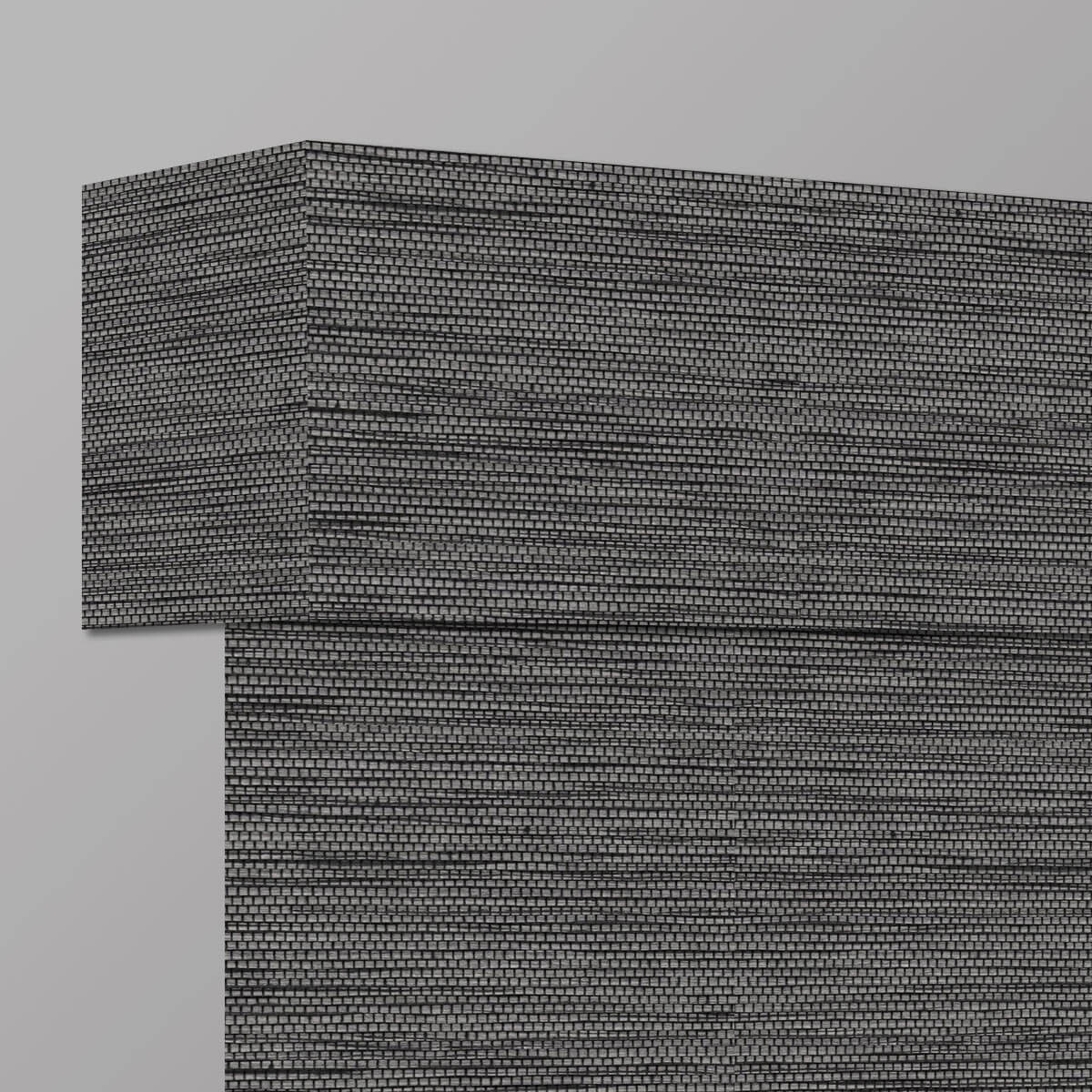

Cornice Upgrade: Enhance your window with a fabric-wrapped 4" cornice board for a polished, finished appearance that conceals the headrail.

The Select Blinds Difference

DIY-friendly

Handcrafted to order

Free shipping

Measuring protection guarantee

Free 3 year limited warranty

Select Blinds is committed to making home improvement easy and accessible. Our DIY-friendly design ensures a straightforward installation process, and every product is shipped free to your doorstep for your convenience.

With over 170 products and 1,800 colors to choose from, Select Blinds offers unmatched variety and quality in custom window treatments. Each product is handcrafted with care to ensure exceptional results you’ll love.

Specifications

Width

17" - 94"

*Varies by lift style

Height

16" - 106"

*Varies by lift style

Depth

1 1/4"

*Minimum

Headrail Height

Dimensions by Configuration

Configuration	Width	Height	Required Mounting Space
Manual Control Left/Right & Free Flow Stack	2 panels 24" - 96" 3 panels 36" - 144" 4 panels 48" - 192" 5 panels 60" - 216" 6 panels 72" - 216" 7 panels 84" - 216"	24" - 120"	Minimum Inside Mount Depth: 2 panels- 1 1/4" 3 panels- 1 1/4" or 2 3/4" Motorized 4 panels- 2" or 3 1/2" Motorized 5 panels- 2" or 3 1/2" Motorized 6 panels- 2 1/4" or 3 3/4" Motorized 7 panels- 4" or 5 1/2" Motorized Minimum Flush Mount Depth: 2 panels- 1 5/8" 3 panels- 2" or 3 1/2" Motorized 4 panels- 2 3/4" or 4 1/4" Motorized 5 panels- 3 3/8" or 4 7/8" Motorized 6 panels- 4" or 5 1/2" Motorized 7 panels- 4 3/4" or 6 1/4" Motorized Outside Mount Space: 2-5 panels 2 1/8" 6 panels 2 1/2" 7 panels 2 1/8"
Manual Control Split Stack	4 panels 48" - 168" 6 panels 72" - 216" 8 panels 84"- 216" 10 panels 120" - 216	24" - 120"	Minimum Inside Mount Depth: 4 panels- 1 1/4" or 2 3/4" Motorized 6 panels- 2" or 3 1/2" Motorized 8 panels- 2" or 3 1/2" Motorized 10 panels- 2 1/4" or 3 3/4" Motorized Minimum Flush Mount Depth: 4 panels- 2" or 3 1/2" Motorized 6 panels- 2 3/4" or 4 1/4" Motorized 8 panels- 3 3/8" or 4 7/8" Motorized 10 panels- 4" or 5 1/2" Motorized Outside Mount Space: 2-5 panels 2 1/8" 6 panels 2 1/2" 7 panels 2 1/8"
Motorization	40" - 120"	24" - 120"	-

Fit & Factory Deductions

Recommendations

For inside mount, measure carefully using your exact opening size. No need to adjust for factory deductions—we handle that for you (deductions may vary ±1/8").

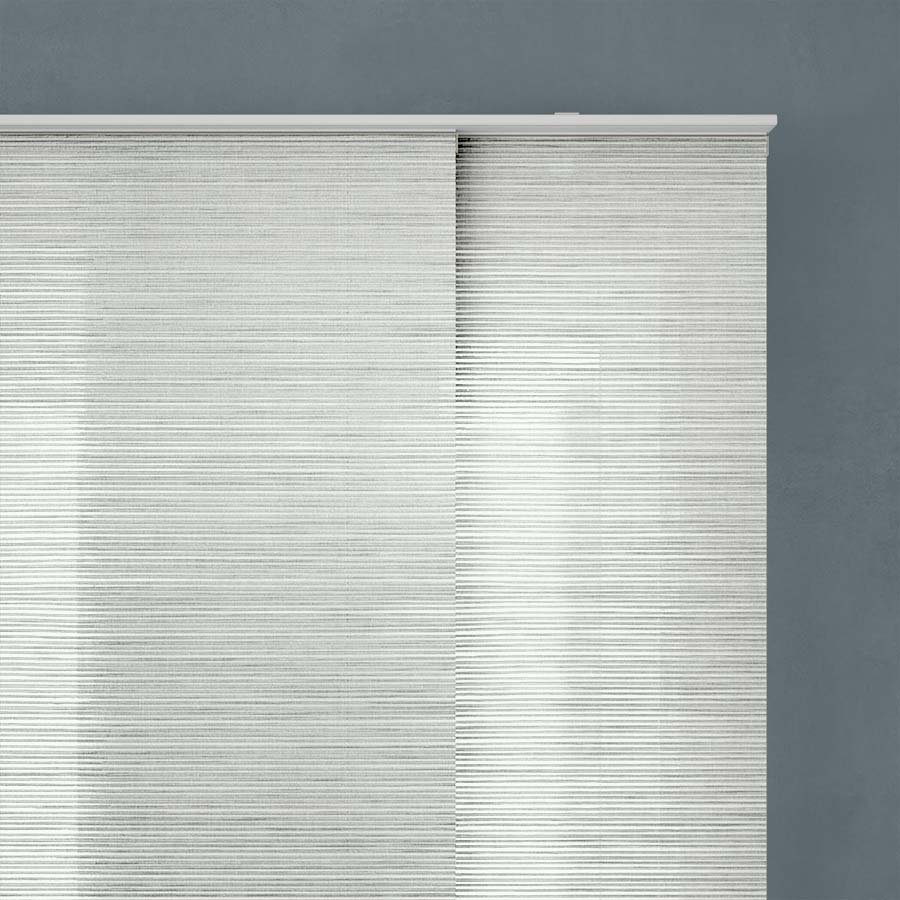

Panel tracks feature overlapping fabric panels (about 3") for enhanced light control, but small depth gaps between panels are normal.
Panels slide smoothly along a track and stack based on your selected stacking option, which may vary by lift style.
Larger widths may require a spliced track for added support and stability.
Calculation for finding panel width is: Ordered track width + Appropriate panel count (provided below)/ Divided by how many panels ordered = Panel Width (Round up to nearest 1/8")
Appropriate Panel Count: 2 panels + 3", 3 panels + 6", 4 panels + 9", 5 panels + 12", 6 panels + 15", 7 panels + 18", 8 panels + 21", 10 panels + 27"
There will be a 1/2" light gap at the bottom of the hanging panels.
For example: If you are ordering a track at 66" wide with 7 panels- 66+18= 84/7= 12" panel width.

Good to Know

Widths greater than 119" require a spliced track for maximum support. A spliced track is two tracks joined together.
Cornice boards wider than 119" will be made up of two separate cornices that are installed side by side.
Standard panel overlap: 3”
Inside mount deductions: 1/2" off of panels, 1/4" off of headrail. 1/2" off of height. Deductions may vary +/- 1/8.
There is no light gap between the rail and the panels.
Total height includes panels plus the track. Panels will be approximately 1-3/8" smaller than height ordered for inside mount and 1" for outside mount. With a cornice, it will be 2-1/4" smaller than height for inside mount and 1-7/8" smaller for outside mount.
Outside mounted panel tracks that are left or right stack will have the wand placed on the leading edge of the front panel. All other configurations will have the wand placed behind the leading edge of the front panel, hidden from view. Free Flow panel tracks will not have a wand.
Right control stacks panels on the left. Left control stacks panels on the right. Free flow panels can be stacked anywhere.
If outside mount is selected ceiling mount hardware will need to be requested through customer service.
This is not a 100% privacy product; some fabrics may become sheer in certain lighting circumstances.
Panels may have an approximate 1/2" deep gap between them.
The Manual Control wand will always be 45" long, regardless of ordered height.

Motorization

Remote Motorization

Motorization is not available with Split or Free Flow Stack
Remotes will always be silver in color
The 1-channel remote can control multiple motors at once; all shades will operate together with the same settings
Motor is always white in color and will always be on the left side of the track
Track endcaps will always be white with motorization
Motorization requires at least 3 panels to operate, 2 panel options not available. 7 panel options are also unavailable
Integrated battery is rechargeable with an included charging cable, 1 charger incldued per order
Battery life span is approximately 400 cycles on average
Shades comes fully charged with limits preset
It takes approximately 8 hours to recharge the motor when fully depleted
Remote comes programmed to the shade
Remote range will function up to 60 ft
Motorized options are powered by rechargeable lithium-ion batteries, which will be shipped at or below 30% charge for safety. Fully charge your shades before use for optimal performance.

Downloads

Motorization Instructions

Measuring

Inside Mount Instructions

How to Measure the Width

Start by measuring the exact width from left to right of the inside edge of the window frame. Measure in three places: top, middle, and bottom.
Write down the smallest of the 3 widths.
For 1/16” or 1/32” increments, round down to the nearest 1/8”. (For example, if the smallest measurement is 24 9/16", round down to 24 1/2". If it's 24 3/8", no need to round down.)
Use this width when you will order.

How to Measure the height

Starting from the top and working your way to the bottom, measure the exact height of the window frame in three main places, including the top left, the center, and top right, all the way down to the window sill. If you are measuring patio doors, measure all the way to the floor.
Use the smallest height out of the 3.
For increments of 1/16” or 1/32”, round down to the nearest 1/8”. (For example, if the smallest measurement is 24 9/16", round down to 24 1/2". If it's 24 3/8", no need to round down.)
Use this height when you will order.

Outside Mount Instructions

An outside mount is a great choice for better light coverage, since it fully covers the window and frame. To get the right fit, you’ll need to account for a few extra measurements when placing your order. We’ll custom make your shade to the exact dimensions you provide—no automatic additions are made.

Flat Surface Requirements

Start by choosing where you’d like to mount your shade. You’ll need at least 1-2½” of flat mounting space. For more details, check the product page and review the “Specifications” tab.

Measuring the width

Measure the exact width (left to right) of the wooden or metal window frame or how wide you would like the blind or shade to be.
Make sure to measure wide enough as to cover the entire window and provide maximum light gap coverage. We recommend 2" of coverage on each side of the window so a total of an additional 4" added onto the width. For example: If the window opening is 72", it might be helpful to order 76". This will provide 2" of coverage on each side of the window so ensure that the blind will be wide enough to cover the opening.
Write down that size making sure that it is the first number of the measurement.
Keep in mind that the valance will be about 2" wider than the width ordered.

Measuring the height

Measure the exact height (top to bottom) from the top headrail location to the bottom sill (or to the floor for patio doors) in three places (left, middle, and right).
We recommend adding about 3 or 4 inches to this number to insure maximum light gap coverage and to cover the window completely. For example: If the height of the window opening is 80", it is recommended to order 83" - 84" to ensure to get the optimum light coverage. This will provide the 3"-4" of coverage to ensure that the blind is long enough.
Write down that size making sure that it is the second number of the measurement. This is the height you will order.
Please be sure to know that the height measurement will always include the headrail. Example: if the height ordered is 80" this will be the height including the headrail (from the very top of the headrail to the bottom rail). The vanes will be about 1 3/4" smaller than height ordered so when attached to headrail it will total to height ordered.
You will want to mount the headrail above the window frame. Please make a note that some windows have trim that might interfere with mounting so it's important to measure above the trim if this is the case.

Measuring Tips

Downloads

Measure Instructions

Contact Customer Support

Shipping & Production

Expedite Your Order Today

Free Shipping on Everything

Freight Surcharge Chart	SelectBlinds	Other Retailers
Blinds and shades under 94" wide	Free	Free
Blinds and shades 94" wide & above	Free	$70 per oversize product
Vertical blinds 94" in height or width & above	Free	$70 per oversize product
Some Shutters	Free	$70 per oversize product
