Bespoke Room Darkening Panel Track

Product Details

Description

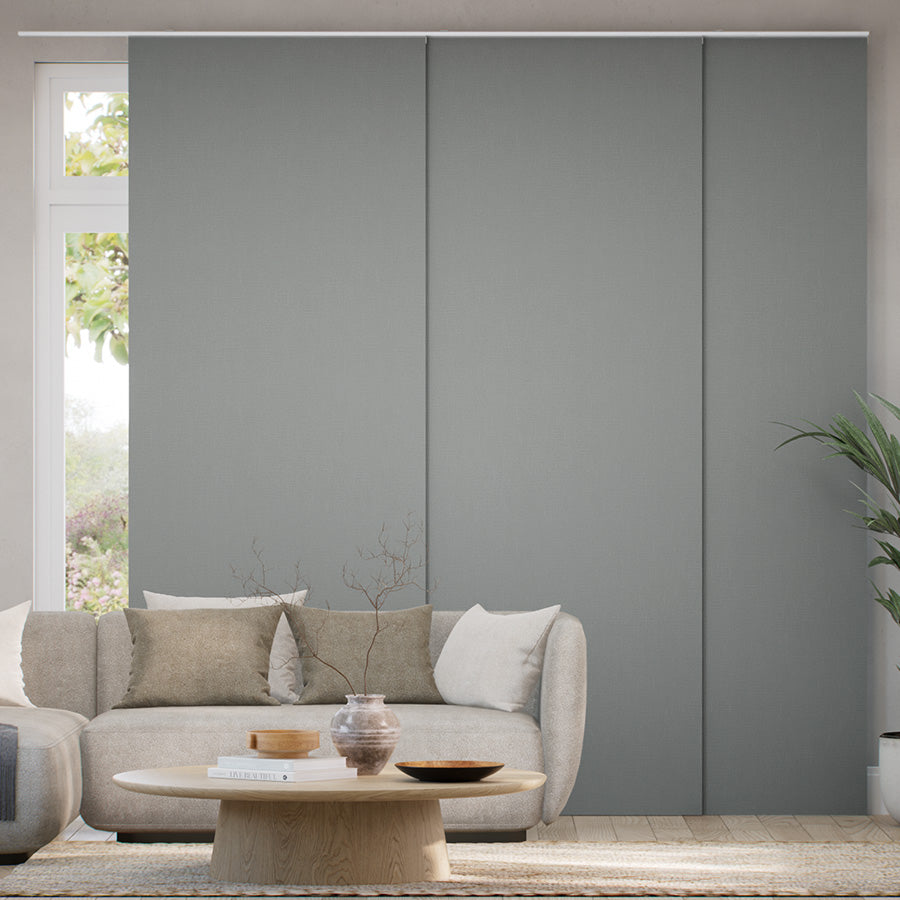

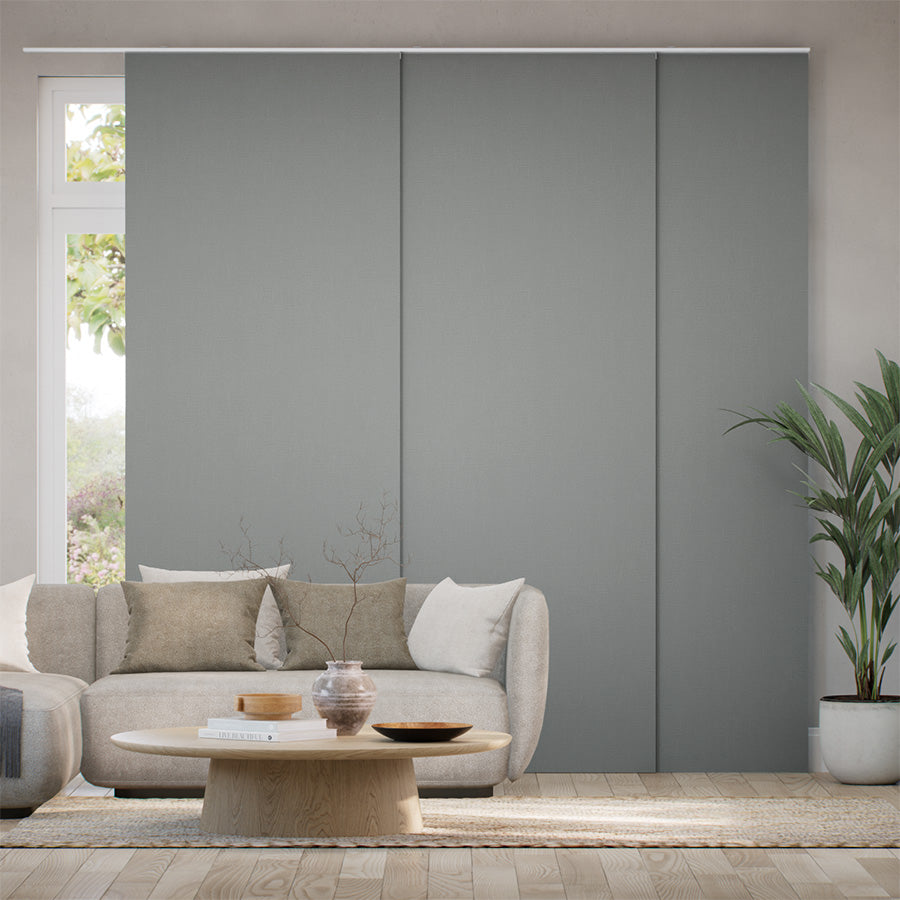

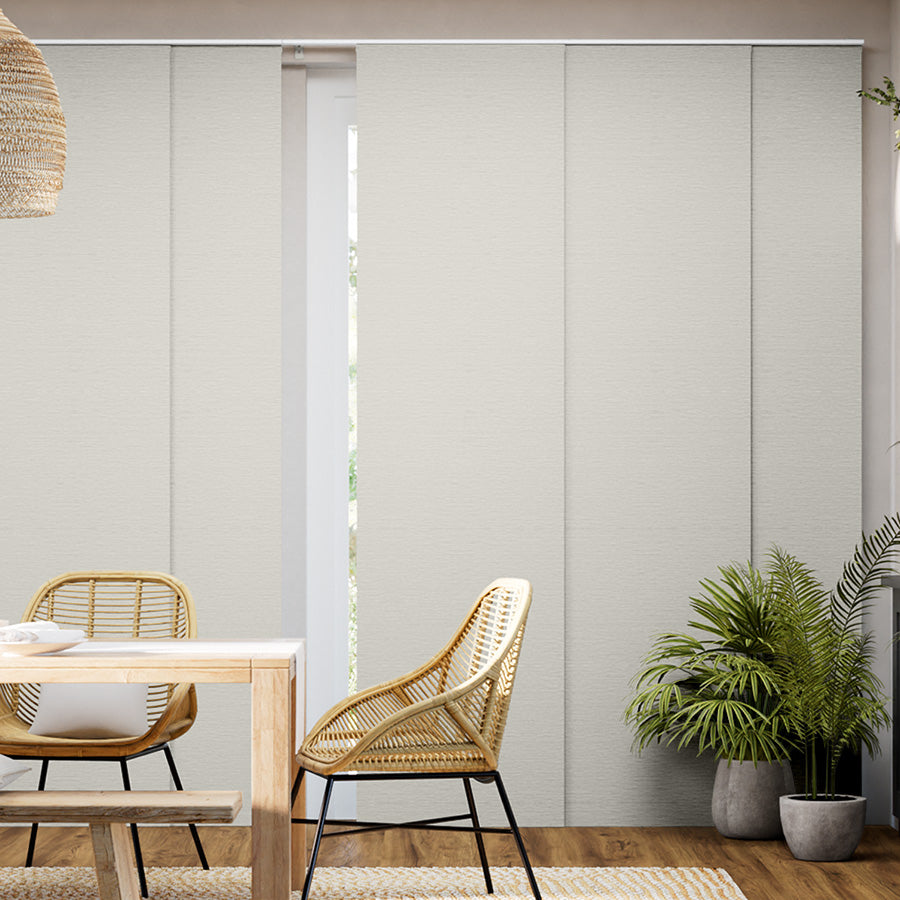

Bring sophisticated style and practical function to your wide windows and sliding doors with Bespoke Room Darkening Panel Track. These modern panels offer sleek, streamlined coverage while delivering enhanced privacy, UV protection, and a room-darkening effect that helps reduce glare and regulate indoor temperatures. With a minimalist aesthetic and elevated color palette, these panel tracks are ideal for both residential and commercial spaces.

Why They Are Loved

Room-Darkening Performance: Reduces light for better comfort and energy efficiency.
Modern, Streamlined Design: Ideal for large windows, patio doors, and open spaces.
Privacy and Protection: Blocks outside visibility while helping protect interiors from UV damage.
Durable Material: Made from high-quality polyester and backed with an acrylic lining for lasting style and function.
Elevated Colors: Select from a refined range of modern shades to complement your interior décor.
Easy to Style: Pair them with matching fabrics in Bespoke Room Darkening Roller Shades for a cohesive look.

Customization Options

The Select Blinds Difference

DIY-friendly

Handcrafted to order

Free shipping

Measuring protection guarantee

Free 3 year limited warranty

Select Blinds is committed to making home improvement easy and accessible. Our DIY-friendly design ensures a straightforward installation process, and every product is shipped free to your doorstep for your convenience.

With over 170 products and 1,800 colors to choose from, Select Blinds offers unmatched variety and quality in custom window treatments. Each product is handcrafted with care to ensure exceptional results you’ll love.

Specifications

Width

24"-216"

*Varies by lift style and panel configuration

Height

36" - 144"

*Varies by lift style

Depth

1 3/4"

*Minimum

Headrail Height

1 5/8"

*Minimum

Dimensions by Configuration

Configuration	Width	Height	Required Mounting Space	Headrail
2 Panels	24"- 53 7/8"	36" - 144"	1 3/4" Inside Mount Minimum Depth 2 1/2" Inside Mount Flush Depth 3 1/8" Outside Mount Minimum Space	Inside Mount: 1 5/8" D x 3/4" H Outside Mount: 4 3/4" D x 3/4" H
3 Panels	54"- 75 3/8"	36" - 144"	1 3/4" Inside Mount Minimum Depth 2 3/4" Inside Mount Flush Depth 3 1/8" Outside Mount Minimum Space	Inside Mount: 2" D x 3/4" H Outside Mount: 5 1/4" D x 3/4" H
4 Panels	75 1/2"- 83 7/8"	36" - 144"	1 3/4" Inside Mount Minimum Depth 3 1/2" Inside Mount Flush Depth 3 1/8" Outside Mount Minimum Space	Inside Mount: 2 3/4" D x 3/4" H Outside Mount: 6" D x 3/4" H
5 Panels	84"- 216"	36" - 144"	2 1/4" Inside Mount Minimum Depth 3 3/4" Inside Mount Flush Depth 3 1/8" Outside Mount Minimum Space	Inside Mount: 3 5/8" D x 3/4" H Outside Mount: 7 3/8" D x 3/4" H

Fit & Factory Deductions

Recommendations

For inside mount, measure carefully using your exact opening size. No need to adjust for factory deductions—we handle that for you (deductions may vary ±1/8").
Panel tracks feature overlapping fabric panels (about 3") for enhanced light control, but small depth gaps between panels are normal.
Panels slide smoothly along a track and stack based on your selected stacking option, which may vary by lift style.
Larger widths may require a spliced track for added support and stability.
Calculation for finding panel width is: Ordered track width + Appropriate panel count (provided below)/ Divided by how many panels ordered = Panel Width (Round up to nearest 1/8")
Appropriate Panel Count: 2 panels + 3", 3 panels + 6", 4 panels + 9", 5 panels + 12", 6 panels + 15", 7 panels + 18", 8 panels + 21", 10 panels + 27"
There will be a 1/2" light gap at the bottom of the hanging panels.
For example: If you are ordering a track at 66" wide with 7 panels- 66+18= 84/7= 12" panel width.

Good to Know

Panel Overlap - 3" for enhanced privacy and light control.
Panel Width Calculation - Ordered track width / panel count + 3" = approximate panel width. Round up to the nearest 1/8".
Panels may have an approximate 1/2" deep gap between them.
There will be a 1/2" light gap at the bottom of the hanging panels for inside mount.
Inside Mount Deductions - 1/2" off panel height, 1/4" off headrail width. Total height includes panels plus track. No light gap between the rail and panels. Deductions may vary +/- 1/8".
Depth requirements vary by panel count. Check specifications for detailed guidance.
Wands are 36" standard length regardless of height ordered. Color coordinated.
Panel tracks will have the wand placed on the leading edge of the front panel.
Heavy-duty Velcro is sewn into the panels to secure them to the carriers on the track.

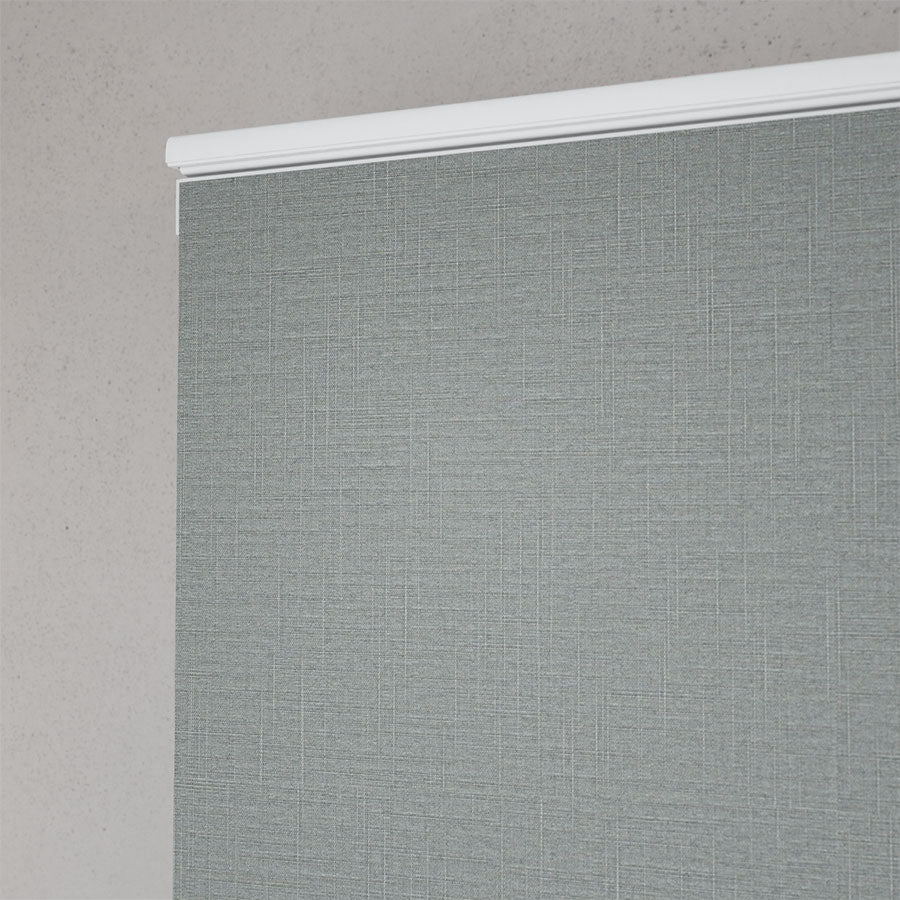

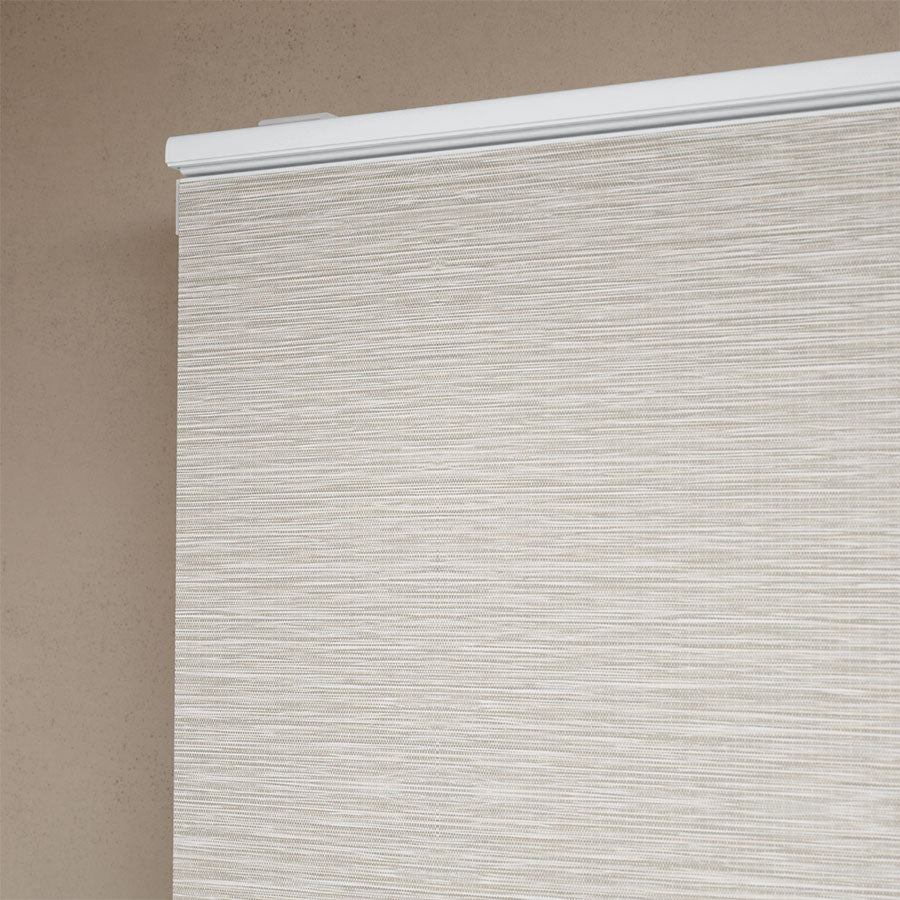

Panel tracks come standard with white aluminum track with no valance.
Track Splice Bracket - Included for tracks over 144" wide. A spliced track is two tracks joined together.
Panel Height - Panels will be approximately 1-3/8" shorter than ordered height for inside mount, and 1" for outside mount.
Ceiling Mount - May require specialty hardware not included with order.

Measuring

Inside Mount Instructions

How to Measure the Width

Start by measuring the exact width from left to right of the inside edge of the window frame. Measure in three places: top, middle, and bottom.
Write down the smallest of the 3 widths.
For 1/16” or 1/32” increments, round down to the nearest 1/8”. (For example, if the smallest measurement is 24 9/16", round down to 24 1/2". If it's 24 3/8", no need to round down.)
Use this width when you will order.

How to Measure the height

Starting from the top and working your way to the bottom, measure the exact height of the window frame in three main places, including the top left, the center, and top right, all the way down to the window sill. If you are measuring patio doors, measure all the way to the floor.
Use the smallest height out of the 3.
For increments of 1/16” or 1/32”, round down to the nearest 1/8”. (For example, if the smallest measurement is 24 9/16", round down to 24 1/2". If it's 24 3/8", no need to round down.)
Use this height when you will order.

Outside Mount Instructions

An outside mount is a great choice for better light coverage, since it fully covers the window and frame. To get the right fit, you’ll need to account for a few extra measurements when placing your order. We’ll custom make your shade to the exact dimensions you provide—no automatic additions are made.

Flat Surface Requirements

Start by choosing where you’d like to mount your shade. You’ll need at least 1-2½” of flat mounting space. For more details, check the product page and review the “Specifications” tab.

Measuring the width

Measure the exact width (left to right) of the wooden or metal window frame or how wide you would like the blind or shade to be.
Make sure to measure wide enough as to cover the entire window and provide maximum light gap coverage. We recommend 2" of coverage on each side of the window so a total of an additional 4" added onto the width. For example: If the window opening is 72", it might be helpful to order 76". This will provide 2" of coverage on each side of the window so ensure that the blind will be wide enough to cover the opening.
Write down that size making sure that it is the first number of the measurement.
Keep in mind that the valance will be about 2" wider than the width ordered.

Measuring the height

Measure the exact height (top to bottom) from the top headrail location to the bottom sill (or to the floor for patio doors) in three places (left, middle, and right).
We recommend adding about 3 or 4 inches to this number to insure maximum light gap coverage and to cover the window completely. For example: If the height of the window opening is 80", it is recommended to order 83" - 84" to ensure to get the optimum light coverage. This will provide the 3"-4" of coverage to ensure that the blind is long enough.
Write down that size making sure that it is the second number of the measurement. This is the height you will order.
Please be sure to know that the height measurement will always include the headrail. Example: if the height ordered is 80" this will be the height including the headrail (from the very top of the headrail to the bottom rail). The vanes will be about 1 3/4" smaller than height ordered so when attached to headrail it will total to height ordered.
You will want to mount the headrail above the window frame. Please make a note that some windows have trim that might interfere with mounting so it's important to measure above the trim if this is the case.

Measuring Tips

Downloads

Measure Instructions

Contact Customer Support

Shipping & Production

Expedite Your Order Today

Free Shipping on Everything

Freight Surcharge Chart	SelectBlinds	Other Retailers
Blinds and shades under 94" wide	Free	Free
Blinds and shades 94" wide & above	Free	$70 per oversize product
Vertical blinds 94" in height or width & above	Free	$70 per oversize product
Some Shutters	Free	$70 per oversize product
